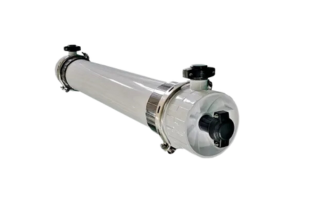

Ascend Wastewater Treatment PVDF Membrane
Ensuring Water Source Security
Ascend Wastewater Treatment PVDF Membrane- Details
Ascend Membrane Wastewater Treatment Series products are made from modified polyvinylidene fluoride (PVDF) using an innovative VNIPS membrane fabrication process. These hollow fiber ultrafiltration (UF) membranes have an overall asymmetric structure with a pore size of 0.025 μm, featuring small surface pore size, high porosity, and uniform pore distribution.
Ascend Wastewater Treatment PVDF Membrane- Features
- The membrane fibers are uniformly distributed across six equal-area fan-shaped regions, resulting in high packing density and high wastewater treatment efficiency
- Guide holes are set at the feed water end to direct the incoming water evenly into the filtration system, reducing the risk of clogging
- Unique encapsulation technology reduces membrane fiber breakage, extending the service life
A: Raw water inlet B: Purified water outlet C: Concentrate water outlet D: Air inlet
Ascend Wastewater Treatment PVDF Membrane- Model
| Model | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L(mm) |
|---|---|---|---|---|---|
| MP-ZU0880-B | 2000 | 2130 | 96 | 2320 | 2360 |
| MP-ZU0880-A | 2000 | 2130 | 36 | 2232 | 2283 | MP-ZU0860-B | 1500 | 1630 | 96 | 1820 | 1860 | MP-ZU0860-A | 1500 | 1630 | 36 | 1730 | 1783 | MP-ZU0660 | 1500 | 1610 | 104 | 1716 | 1775 | MP-ZU0440 | 1000 | 924 | 97 | / | 1112 |
Model Parameters
Nominal Pore Size(μm)：0.025 OD/ID(mm)：1.3/0.7
Membrane Type：Hollow Fibre
Membrane Materail：Reinforced PVDF
| Product Type | MP-ZU0880-A MP-ZU0880-B |
MP-ZU0860-A MP-ZU0860-B |
MP-ZU0660 | MP-ZU0440 | |
|---|---|---|---|---|---|
| Product Specification | Module dimensions （mm） | A:Φ225×2283 B:Φ225×2360 |
A:Φ225×1783 B:Φ225×1860 |
Φ165×1775 | Φ90×1120 |
| Wet Membrane Length（mm） | 2000 | 2000 | 1500 | 1000 | |
| Active Membrane Area （m2） | 75 | 50 | 40 | 8 | |
| Wet Weight （kg） | 65 | 50-53 | 35 | 10 | |
| L1 / L2 / L4(mm) | 2000 /2130 /2320 | 1500 /1630 /1820 | 1500 /1610 /1716 | 1000 /924 / | |
| Inlet /Outlet Port Size | DN50 | DN50 | DN50 | DN50 | |
| Concentrated Water Port Size | DN50 | DN50 | DN50 | DN50 | |
| Module Material | UPVC | ||||
| Seal Adhesive Material | Epoxy Resin | ||||
| Operation Mode | External Pressure | ||||
| Preserving Type | Wet | ||||
| Applicable Conditions | Range of Filtration Flux/LMH | 40-120 | |||
| Filtration Mode | Full-Flow Filtration & Cross-Flow Filtration | ||||
| Tolerance PH | 2-12 | ||||
| Operation Temperature | 1 - 40 ℃ | ||||
| Inlet turbidity(max) /NTU | 300 NTU | ||||
| Inlet pressure(max) / Mpa | 0.60 MPa | ||||
| Transmembrane pressure (max) /MPa | 0.20 MPa | ||||
| Back wash pressure (max) /MPa | 0.25 MPa | ||||
| Performance | Recovery Rate | ≥90% | |||
| Tolerance of NaClO concentration(max) /mg/L | 5000 mg/L | ||||
| Turbidity of water production /NTU | ≤0.2NTU | ||||
| Suspend matter /mg/L | ≤1 mg/L | ||||
| Water production SDI15 | ≤2.5 | ||||
Ascend Wastewater Treatment PVDF Membrane -Main Applications
