Ascend Water Purification PVDF Membrane
Ensuring Water Source Security
Ascend Water Purification PVDF Membrane- Details
Ascend Membrane Water Purification Series effectively removes large molecules, bacteria, viruses, and other microorganisms from drinking water, significantly improving its quality. The product has received authoritative certifications both domestically and internationally, including NSF/ANSI Standard 61 certification and a hygiene permit for drinking water safety products.
Ascend Water Purification PVDF Membrane- Features
- High Filtration Precision (0.025 μm): Effectively removes harmful substances from water while retaining beneficial minerals.
- Excellent Hydrophilicity: High resistance to fouling.
- Treated Water Meets Sanitary Standards for Drinking Water: Ensures safe and healthy drinking water.
- Stable Operation with High Flux: Provides reliable performance and high water throughput.
A: Raw water inlet B: Purified water outlet C: Concentrate water outlet D: Air inlet
Ascend Water Purification PVDF Membrane- Model
| Model | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L(mm) |
|---|---|---|---|---|---|
| DW-ZU0880-B | 2000 | 2130 | 96 | 2320 | 2360 | DW-ZU0860-B | 1500 | 1630 | 96 | 1820 | 1860 | DW--ZU0660 | 1500 | 1610 | 104 | 1716 | 1775 |
Model Parameters
Nominal Pore Size(μm)：0.025 OD/ID(mm)：1.3/0.7
Membrane Type：Hollow Fibre
Membrane Materail：Reinforced PVDF
| Product Type | DW-ZU0880-B | DW-ZU0860-B | DW-ZU0660 | ||
|---|---|---|---|---|---|
| Product Specification | Module dimensions （mm） | Φ225×2360 | Φ225×1860 | Φ160×1775 | |
| Wet Membrane Length（mm） | 2000 | 1500 | 1500 | ||
| Active Membrane Area （m2） | 75 | 50 | 40 | ||
| Wet Weight （kg） | 65 | 53 | 35 | ||
| L1 / L2 / L4(mm) | 2000 /2130 /2320 | 1500 /1630 /1820 | 1500 /1610 /1716 | ||
| Inlet /Outlet Port Size | DN50 | DN50 | DN50 | ||
| Concentrated Water Port Size | DN50 | DN50 | DN50 | ||
| Module Material | Food Grade UPVC | ||||
| Seal Adhesive Material | Epoxy Resin | ||||
| Operation Mode | External Pressure | ||||
| Preserving Type | Wet | ||||
| Applicable Conditions | Range of Filtration Flux/LMH | 60-120 | |||
| Filtration Mode | Full-Flow Filtration & Cross-Flow Filtration | ||||
| Tolerance PH | <2-12 | ||||
| Operation Temperature | 1 - 40 ℃ | ||||
| Inlet turbidity(max) /NTU | 300 NTU | ||||
| Inlet pressure(max) / Mpa | 0.60 MPa | ||||
| Transmembrane pressure (max) /MPa | 0.20 MPa | ||||
| Back wash pressure (max) /MPa | 0.25 MPa | ||||
| Performance | Recovery Rate | ≥90% | |||
| Tolerance of NaClO concentration(max) /mg/L | 5000 mg/L | ||||
| Turbidity of water production /NTU | ≤0.1NTUx≤1mg/L≤2.5NTU | ||||
| Suspend matter /mg/L | ≤1 mg/L | ||||
| Water production SDI | ≤2.5 | ||||

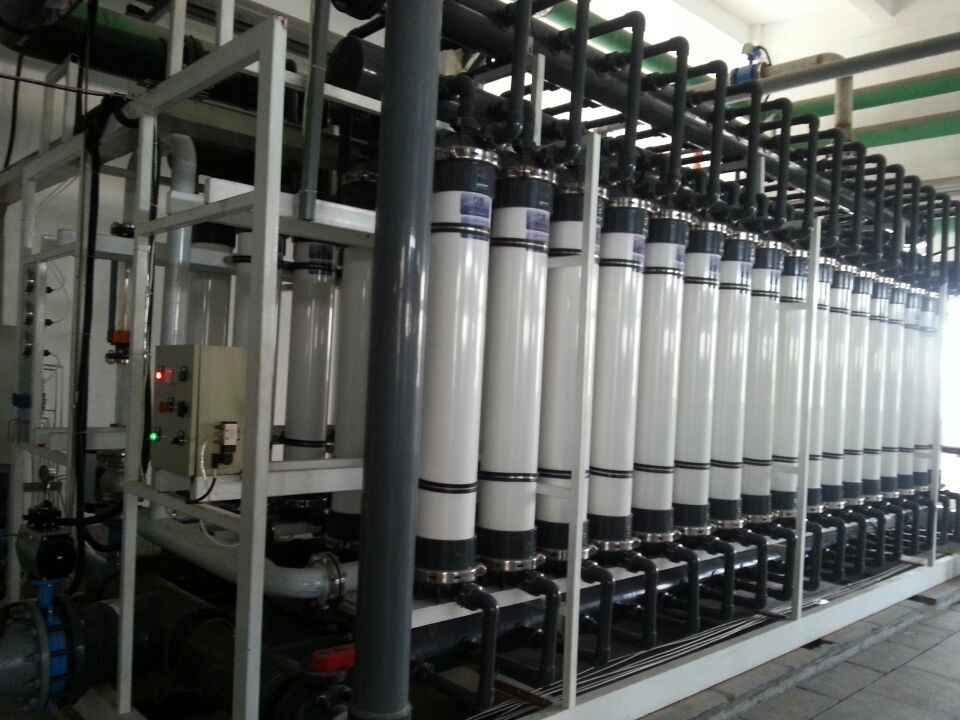

Ascend Water Purification PVDF Membrane -Main Applications
